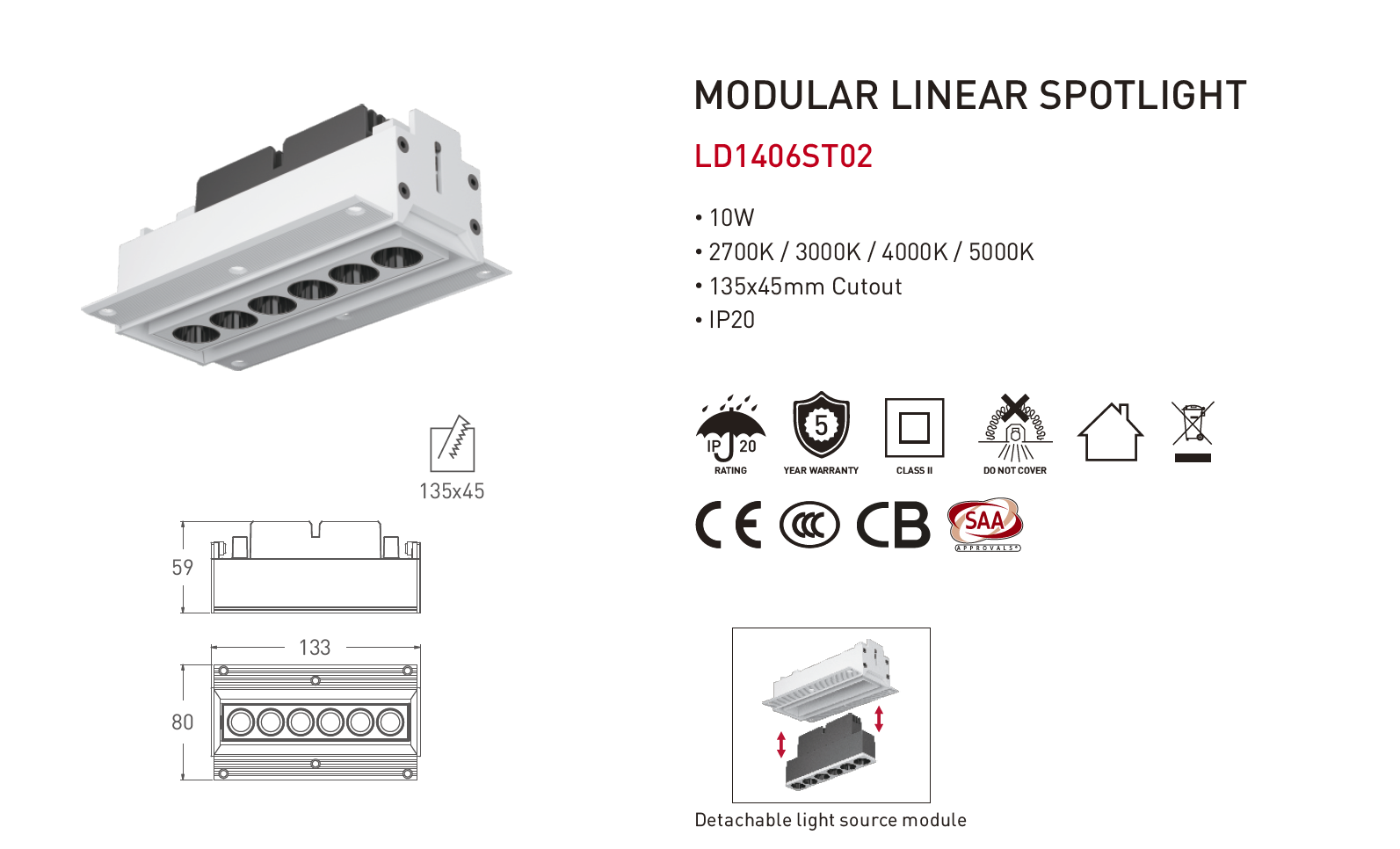

CGD-LD1406S-T02 10W LED Modular Linear Spotlights 135x46mm Cuthole Adjustable Trimless
Voltage：
220-240V AC
Rated Power：
10W
LED：
SMD
CCT：
2700K / 3000K / 4000K / 5000K
CRI：
>90
System Lumen(lm)：
680 Lm - 920 Lm
Beam Angle：
20° / 40°
Power Factor：
>0.9
SDCM：
<3
IP Rating：
IP20
Nominal Lifetime：
50,000Hrs (L80 / B10)
Working Temperature：
-20℃~+40℃
Warranty：
5 years
Dimming：
On/Off; Triac; DALI; 0-10V

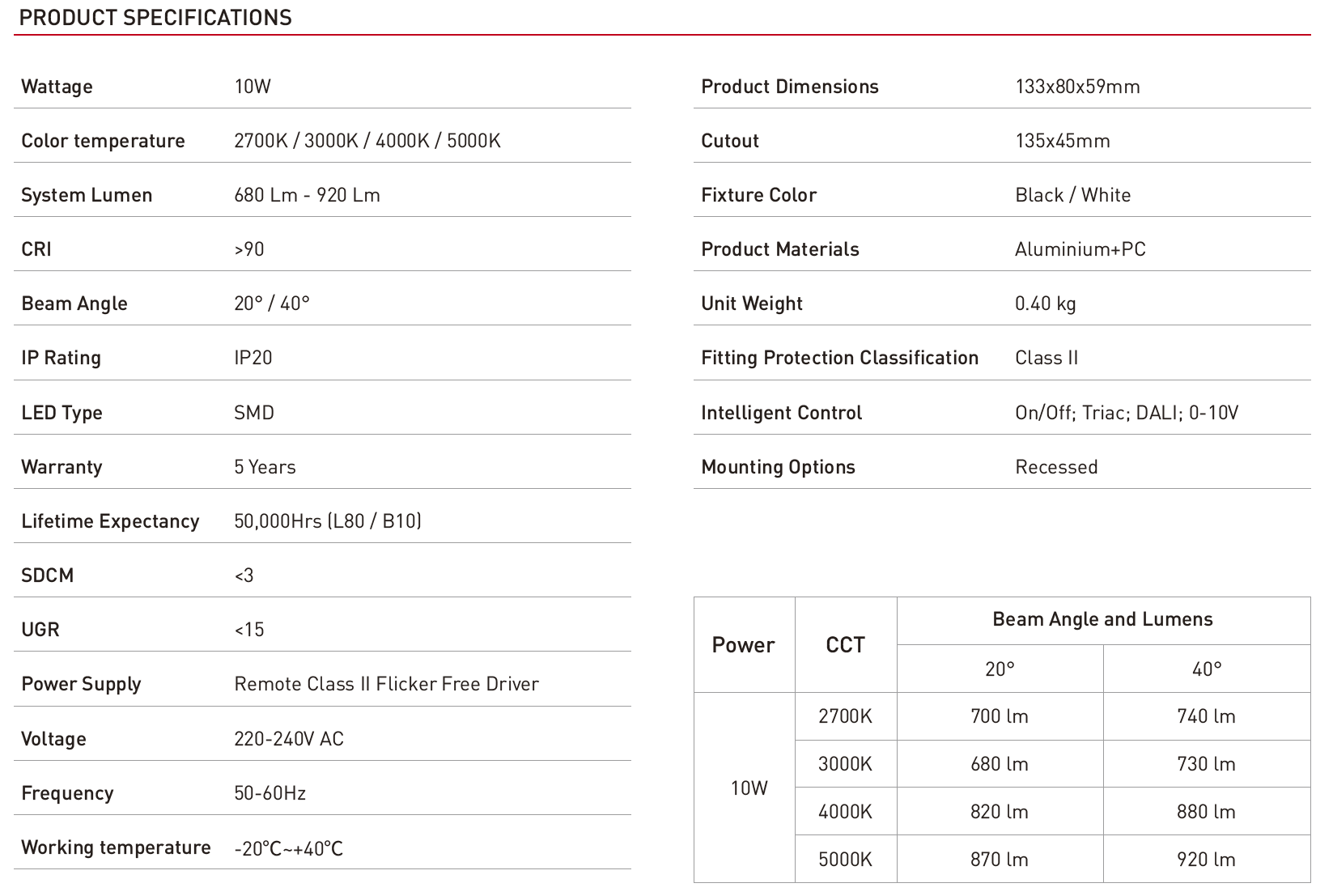

Specification
Data sheet
IES Test Report
Certification
Item No.：
CGD-LD1406S-T02
Wattage：
10W
Color temperature：
2700K / 3000K / 4000K / 5000K
System Lumen：
680 Lm - 920 Lm
CRI：
>90
Beam Angle：
20° / 40°
IP Rating：
IP20
LED Type：
SMD
Warranty：
5 Years
Lifetime Expectancy：
50,000Hrs (L80 / B10)
SDCM：
<3
UGR：
<15
Power Supply：
Remote Class II Flicker Free Driver
Voltage：
220-240V AC
Frequency：
50-60Hz
Working temperature：
-20℃~+40℃
Product Dimensions：
133x80x59mm
Cutout：
135x45mm
Fixture Color：
Black / White
Product Materials：
Aluminium+PC
Unit Weight：
0.40 kg
Fitting Protection Classification：
Class II
Intelligent Control：
On/Off; Triac; DALI; 0-10V
Mounting Options：
Recessed
