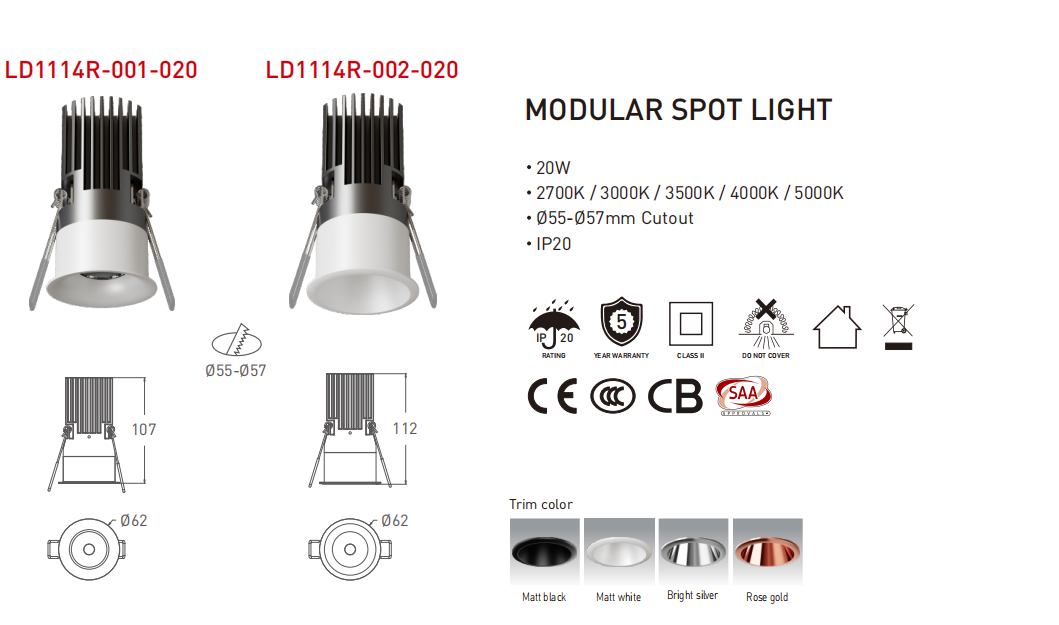

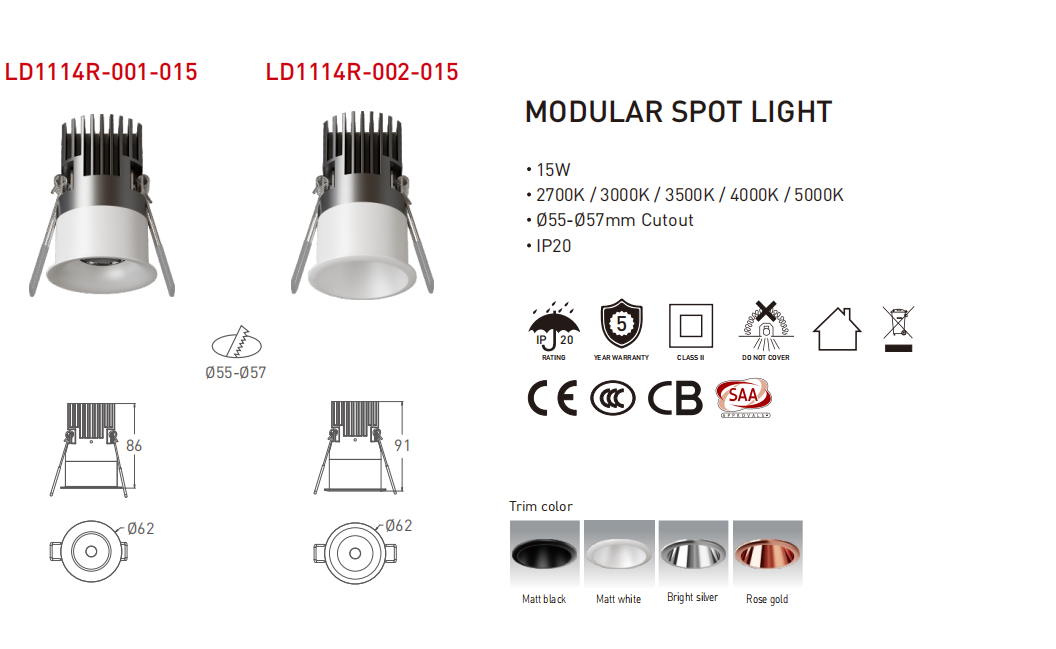

LD1114R-002 15W/20W LED Fixed Spot Lights 55mm Cuthole With Straight-Side Frame
Voltage：
220-240V AC
Rated Power：
15W/20W
LED：
COB
CCT：
2700K/3000K/3500K/4000K/5000K
CRI：
90
System Lumen(lm)：
1100lm~2100lm
Beam Angle：
15°/24°/38°/50°
Power Factor：
0.5
SDCM：
<3
IP Rating：
IP20
Nominal Lifetime：
50,000Hrs (L80 / B10)
Working Temperature：
-20℃~+40℃
Warranty：
5 Years
Dimming：
On/Off; Triac; DALI; 0-10V
Specification
Data sheet
IES Test Report
Certification
Item No.：
LD1114R-002
Wattage：
15W/20W
Color temperature：
2700K/3000K/3500K/4000K/5000K
System Lumen：
1100lm~2100lm
CRI：
90
Beam Angle：
15°/24°/38°/50°
IP Rating：
IP20
LED Type：
COB
Warranty：
5 Years
Lifetime Expectancy：
50,000Hrs (L80 / B10)
SDCM：
<3
UGR：
<19
Power Supply：
Remote Class II Flicker Free Driver
Voltage：
220-240V AC
Frequency：
50-60Hz
Working temperature：
-20℃~+40℃
Product Dimensions：
Ø62X91mm for 15W，Ø62X112mm for 20W
Cutout：
Ø55-Ø57mm
Fixture Color：
White/Black
Product Materials：
Aluminium+PC
Unit Weight：
0.38
Fitting Protection Classification：
Class II
Intelligent Control：
On/Off; Triac; DALI; 0-10V
Mounting Options：
Recessed
