CGD-LB1000R-001 6W/9W LED Module with COB LED Suitable for Multi Frames
Voltage：
220-240V
Rated Power：
9W
LED：
COB LED
CCT：
2700K / 3000K / 3500K / 4000K / 5000K
CRI：
RA90
System Lumen(lm)：
850 Lm - 980 Lm
Beam Angle：
24° / 30° / 38° / 50°
Power Factor：
0.5
SDCM：
<3
IP Rating：
IP20
Nominal Lifetime：
50,000Hrs
Working Temperature：
-20℃~+40℃
Warranty：
5 Years
Dimming：
On/Off; Triac; DALI; 0-10V
Specification
Data sheet
IES Test Report
Certification
Item No.：
LB1000R-001
Wattage：
9W
Color temperature：
2700K / 3000K / 3500K / 4000K / 5000K
System Lumen：
850 Lm - 980 Lm
CRI：
RA90
Beam Angle：
24° / 30° / 38° / 50°
IP Rating：
IP20
LED Type：
COB LED
Warranty：
5 Years
Lifetime Expectancy：
50,000Hrs
SDCM：
<3
UGR：
<15
Power Supply：
Remote Class II Flicker Free Driver
Voltage：
220-240V AC
Frequency：
50-60Hz
Working temperature：
-20℃~+40℃

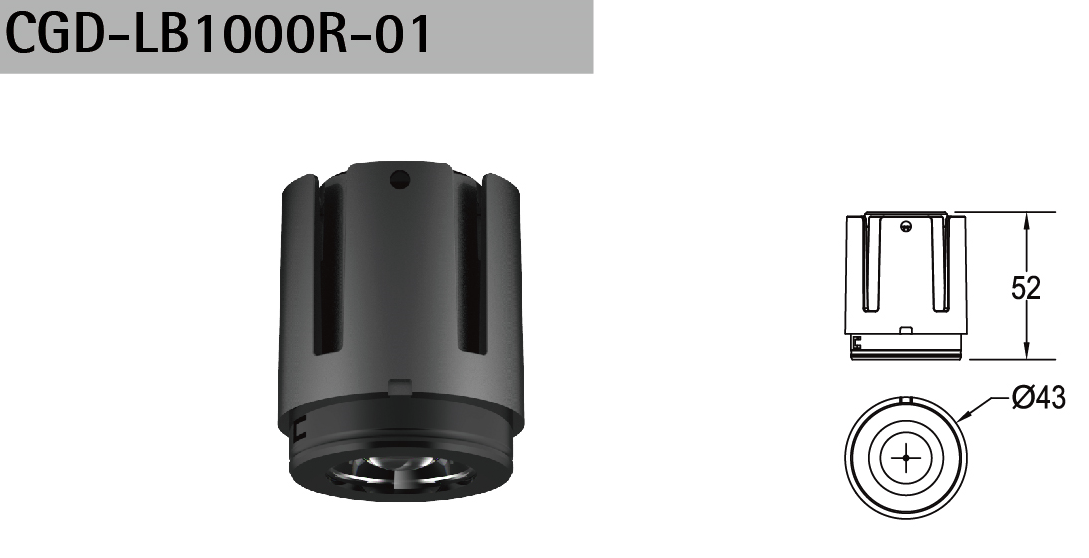

Product Dimensions：
Ø43x52mm
Cutout：
Fixture Color：
Gray
Product Materials：
Aluminium+PC
Unit Weight：
0.17 kg
Fitting Protection Classification：
Class II
Intelligent Control：
On/Off; Triac; DALI; 0-10V
Mounting Options：
Recessed

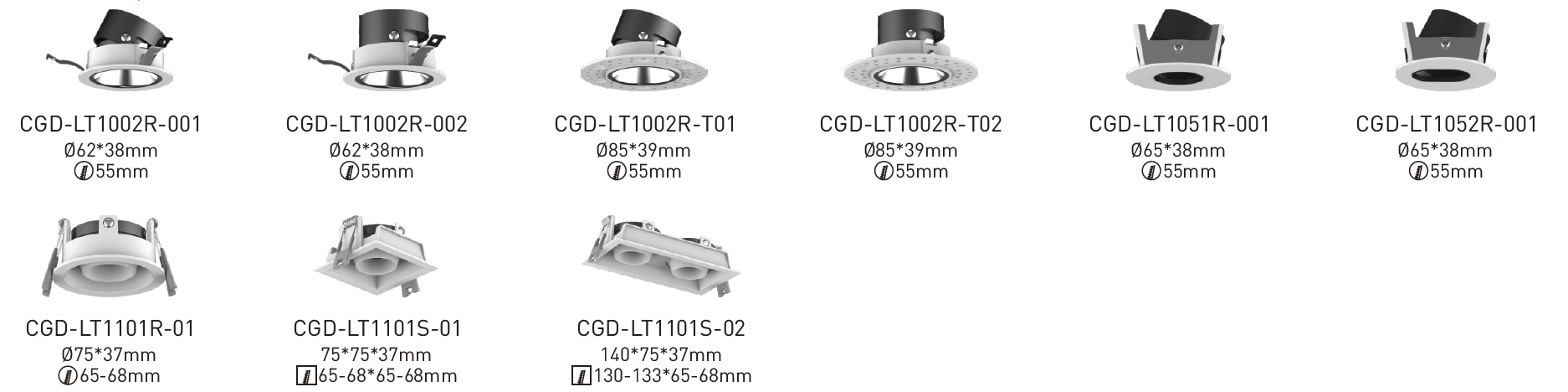

Frame Options :
