PRODUCTS

SHENZHEN CGD LIGHTS INDUSTRAIL CO., LTD. IS A PROFESSIONAL COMMERCIAL LED LIGHTS MANUFACTURER SINCE 2005. All PRODUCTS PASSED CE SAA CB BIS ROHS CERTIFICATE

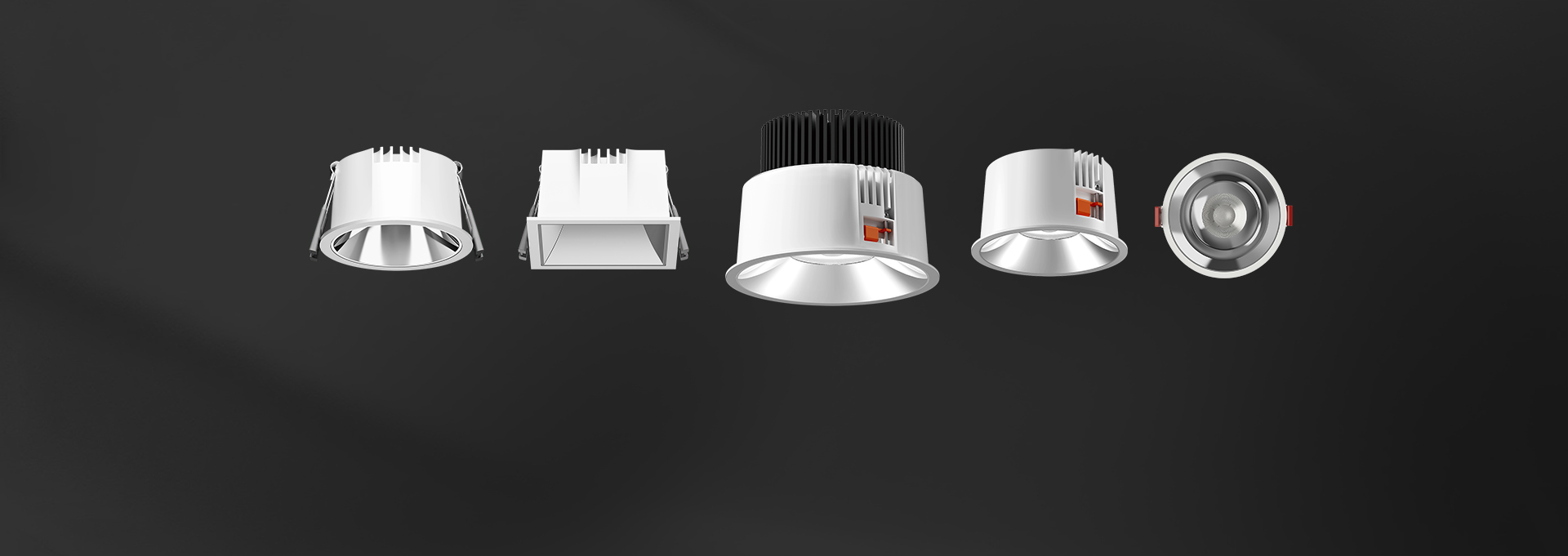

LED Down light series

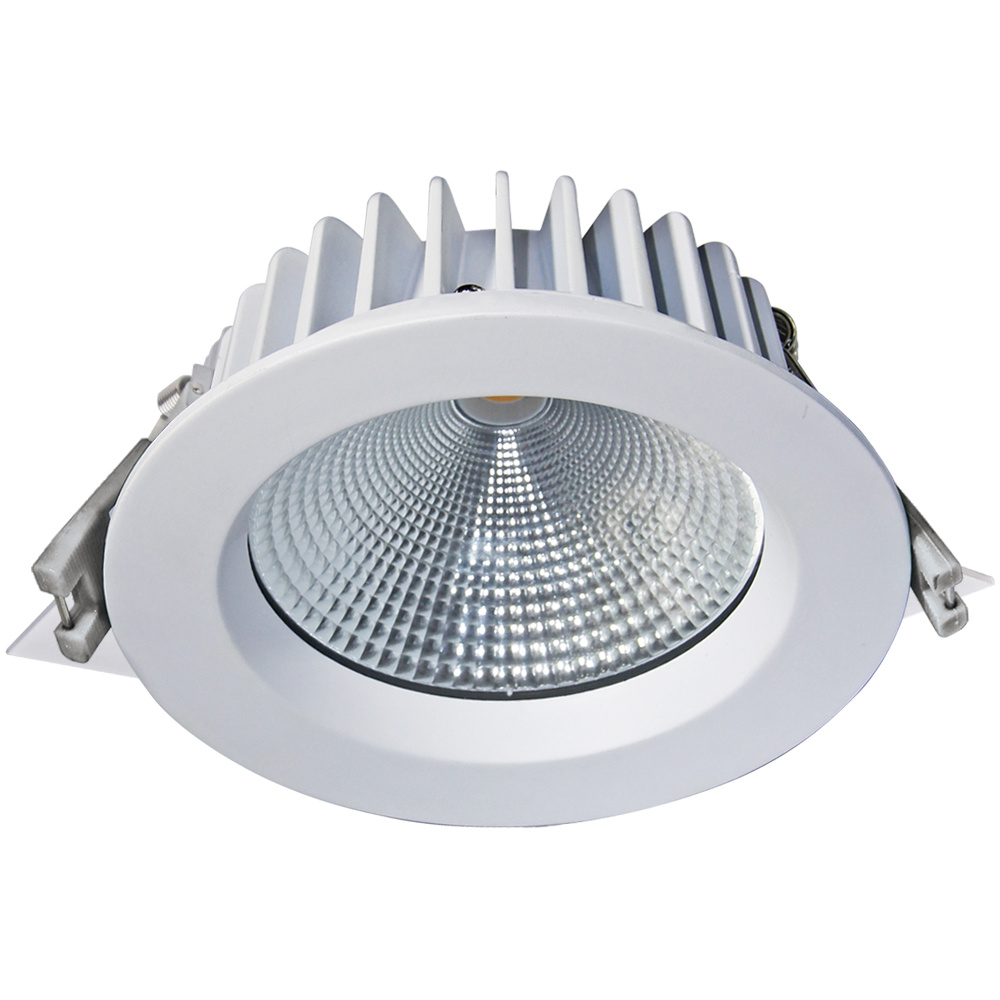

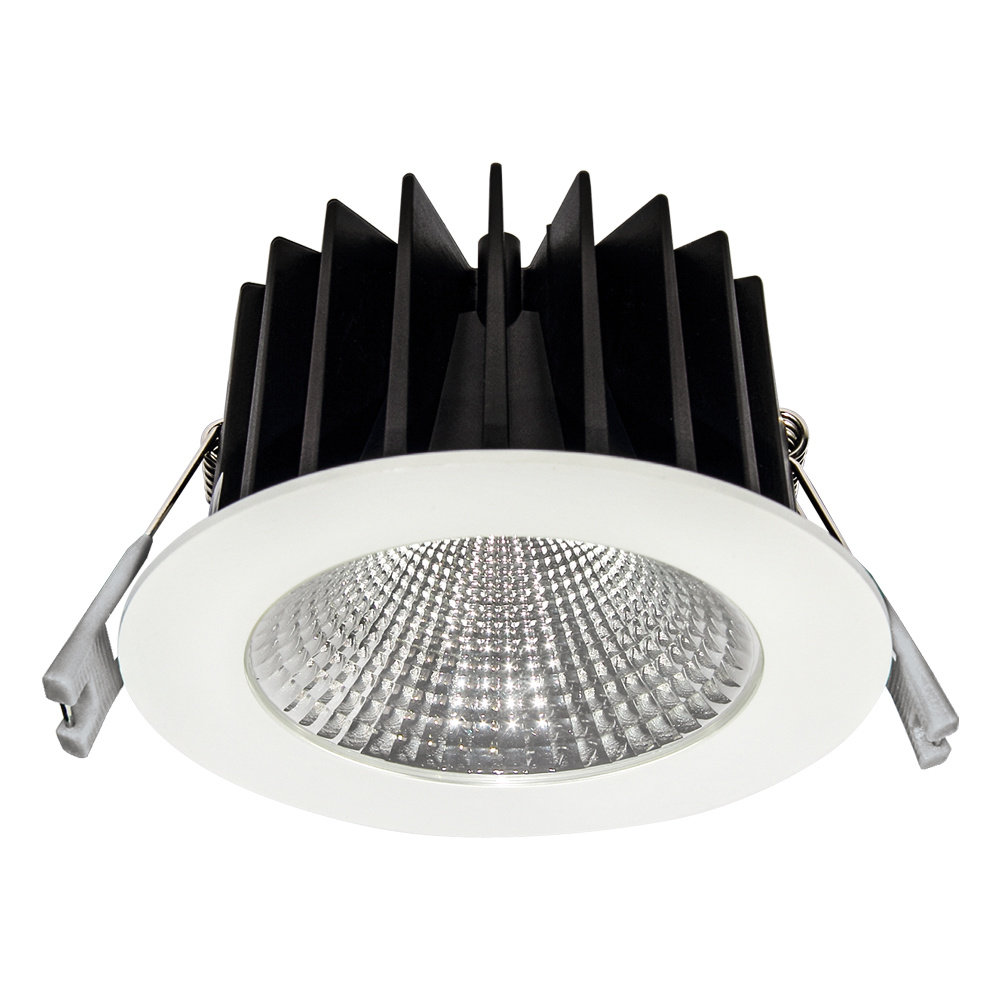

CGD-LD533(SMD)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:15W±10% 18W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White

CGD-LD534(SMD)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:18W±10% 23W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White

CGD-LD535(SMD)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power: 8W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White/Siilver

CGD-LD536(SMD)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:9W±10% 12W±10% 15W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White/Siilver

CGD-LD538(SMD)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:12W±10% 15W±10% 19W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White/Siilver

CGD-LD533(COB)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:11W±10% 15W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White

CGD-LD534(COB)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:15W±10% 18W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White

CGD-LD535(COB)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:6W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White/Siilver

CGD-LD536(COB)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:9W±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White/Siilver

CGD-LD538(COB)

Input voltage:100-240VAC 50-60Hz 200-240VAC/DC 50-60Hz
Output Current:DC 350 mA
Light source: SMD LED

Power:12W±10% 15W±10% 19W ±10%

CCT:3000K/4000K/6000K
Beam Angle: 90°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Surface Color: White/Siilver

CGD-LD734G/CGD-LD734G-B

SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
CGD-LD734G/CGD-L734G-B 15W Down lights
Item No.: CGD-LD734
Voltage: 220-240V 50~60Hz
LED: SMD EPISTAR 2835
Lumen Output: 1000lm±10%
CRI>80
IP:IP20
Beam angle: 80°
CCT:3000K/4000K/6000K
Dimming: Non-Dimmable/Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC
Working Temperature:-20℃-40℃

CGD-LD735G/CGD-LD735G-B

SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
CGD-LD735G/CGD-L735G-B 15W Down lights
Item No.: CGD-LD735
Voltage: 220-240V 50~60Hz
LED: SMD EPISTAR 2835
Lumen Output: 1400lm±10%
CRI>80
IP:IP20
Beam angle: 80°
CCT:3000K/4000K/6000K
Dimming: Non-Dimmable/Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC
Working Temperature:-20℃-40℃
