PRODUCTS

SHENZHEN CGD LIGHTS INDUSTRAIL CO., LTD. IS A PROFESSIONAL COMMERCIAL LED LIGHTS MANUFACTURER SINCE 2005. All PRODUCTS PASSED CE SAA CB BIS ROHS CERTIFICATE

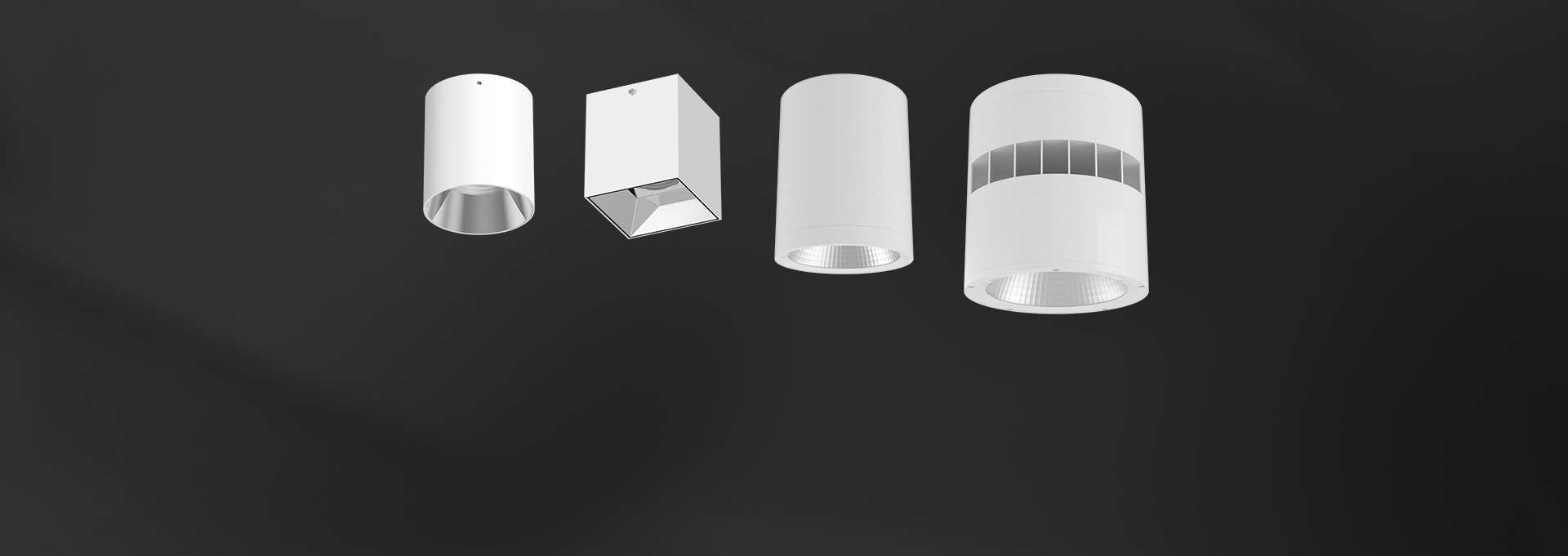

LED Surface Mounted Lights

CGD-LC1516R-01

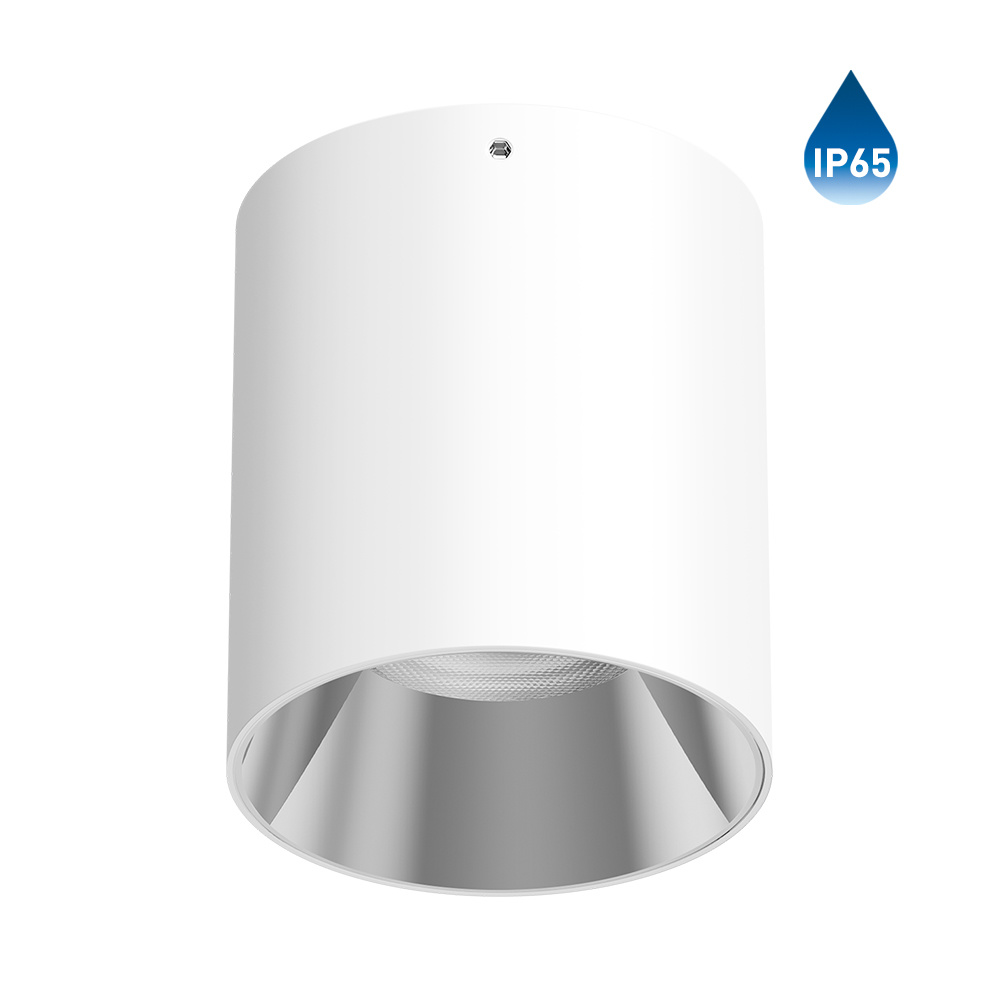

CGD-LC1516R-01 9W 12W 15W Surface mounted down light
SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
Item No.: CGD-LC1516R-01
Voltage: 220-240V 50~60Hz
LED: Bridgelux Gen V8 V10B & CREE 1507 1512
Lumen Output: 900lm to 1200lm±10%
CRI>90
IP:IP65
Beam angle: 24°/38°/55°
CCT: 2700K/3000K/4000K/5000K
Dimming: Non-Dimmable / Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC,SAA
Working Temperature:-20℃-40℃

CGD-LC1517R-01

CGD-LC1517R-01 15W 24W Surface mounted down light
SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
Item No.: CGD-LC1517R-01
Voltage: 220-240V 50~60Hz
LED: Bridgelux Gen V10x & CREE 1516
Lumen Output: 1300lm to 2000lm±10%
CRI>90
IP:IP65
Beam angle: 24°/38°/55°
CCT: 2700K/3000K/4000K/5000K
Dimming: Non-Dimmable / Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC,SAA
Working Temperature:-20℃-40℃

CGD-LC1518R-01

CGD-LC1518R-01 28W 33W Surface mounted down light
SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
Item No.: CGD-LC1518R-01
Voltage: 220-240V 50~60Hz
LED: Bridgelux Gen V13x & CREE 1816 1820
Lumen Output: 2300lm to 2800lm±10%
CRI>90
IP:IP65
Beam angle: 24°/38°/55°
CCT: 2700K/3000K/4000K/5000K
Dimming: Non-Dimmable / Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC,SAA
Working Temperature:-20℃-40℃

CGD-LC1519R-01

CGD-LC1519R-0135W 50W Surface mounted down light
SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
Item No.: CGD-LC1519R-01
Voltage: 220-240V 50~60Hz
LED: SMD 3030
Lumen Output: 3400lm to 5000lm±10%
CRI>90
IP:IP65
Beam angle: 57°
CCT: 3000K/4000K/6000K
Dimming: Non-Dimmable/ Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC
Working Temperature:-20℃-40℃

CGD-LC1520R-01

CGD-LC1520R-01 75W 100W Surface mounted down light
SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
Item No.: CGD-LC1520R-01
Voltage: 220-240V 50~60Hz
LED: Bridgelux SMD 3030
Lumen Output: 7500lm to 10000lm±10%
CRI>90
IP:IP65
Beam angle: 57°
CCT: 3000K/4000K/5000K
Dimming: Non-Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC
Working Temperature:-20℃-40℃

CGD-LC1521R-01

CGD-LC1521R-01 120W 150W Surface mounted down light
SHENZHEN CGD LIGHTS INDUSTRAIL CO.LTD
Item No.: CGD-LC1521R-01
Voltage: 220-240V 50~60Hz
LED: Bridgelux SMD 3030
Lumen Output: 12000lm to 15000lm±10%
CRI>90
IP:IP65
Beam angle: 57°
CCT: 3000K/4000K/6000K
Dimming: Non-Dimmable
Finishing: White/Black
Lifespan: 50000Hours
Certificate: CE RoHS CCC
Working Temperature:-20℃-40℃

CGD-LC114

Input voltage:AC 100-240VAC 50/60Hz AC200-240V 50/60Hz
Output Current:DC800mA/ DC900mA/ DC900mA
Light source:COB(普瑞)
Power:30W±10% /33W±10% /35W±10%
CCT:2700K/3000K/4000K/5000K
Beam Angle:15°/20°/24°/40°/60°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Life Span: 50000Hours 3-PIN
表面颜色:白色/黑色

CGD-LC112

Input voltage:AC 100-240VAC 50/60Hz AC200-240V 50/60Hz
Output Current:DC700mA
Light source:COB(普瑞)
Power:25W±10%
CCT:2700K/3000K/4000K/5000K
Beam Angle:15° 24° 38°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Life Span: 50000Hours 3-PIN
表面颜色:白色/黑色

CGD-LC113

Input voltage:AC 100-240VAC 50/60Hz AC200-240V 50/60Hz
Output Current:DC700mA
Light source:COB(普瑞)
Power:25W±10%
CCT:2700K/3000K/4000K/5000K
Beam Angle:15° 24° 38°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Life Span: 50000Hours 3-PIN
表面颜色:白色/黑色

CGD-LR1009-01-C

Input voltage:AC 100-240VAC 50/60Hz AC200-240V 50/60Hz
Output Current:DC1500mA/ DC1200mA
Power:12W±10%
CCT:2700K/3000K/4000K/5000K
Beam Angle:15°/24° /38°/55°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Life Span: 50000Hours 3-PIN
表面颜色:白色/黑色

CGD-LR1003R-02-C

Input voltage:AC 100-240VAC 50/60Hz AC200-240V 50/60Hz
Output Current:DC800mA/ DC900mA/ DC900mA
Light source:COB(普瑞)
Power:20W±10% CCT:2700K/3000K/4000K/5000K
Beam Angle:15°/24°/38°/55°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Life Span: 50000Hours 3-PIN
表面颜色:白色/黑色

CGD-LR1004R-02-C

Input voltage:AC 100-240VAC 50/60Hz AC200-240V 50/60Hz
Output Current:DC800mA
Light source:COB(普瑞)
Power:30W±10%
CCT:2700K/3000K/4000K/5000K
Beam Angle:15°/24°/38°/60°
Operation Temperature:-20°-+50°
Fixture Material: Aluminium
Life Span: 50000Hours 3-PIN
表面颜色:白色/黑色
