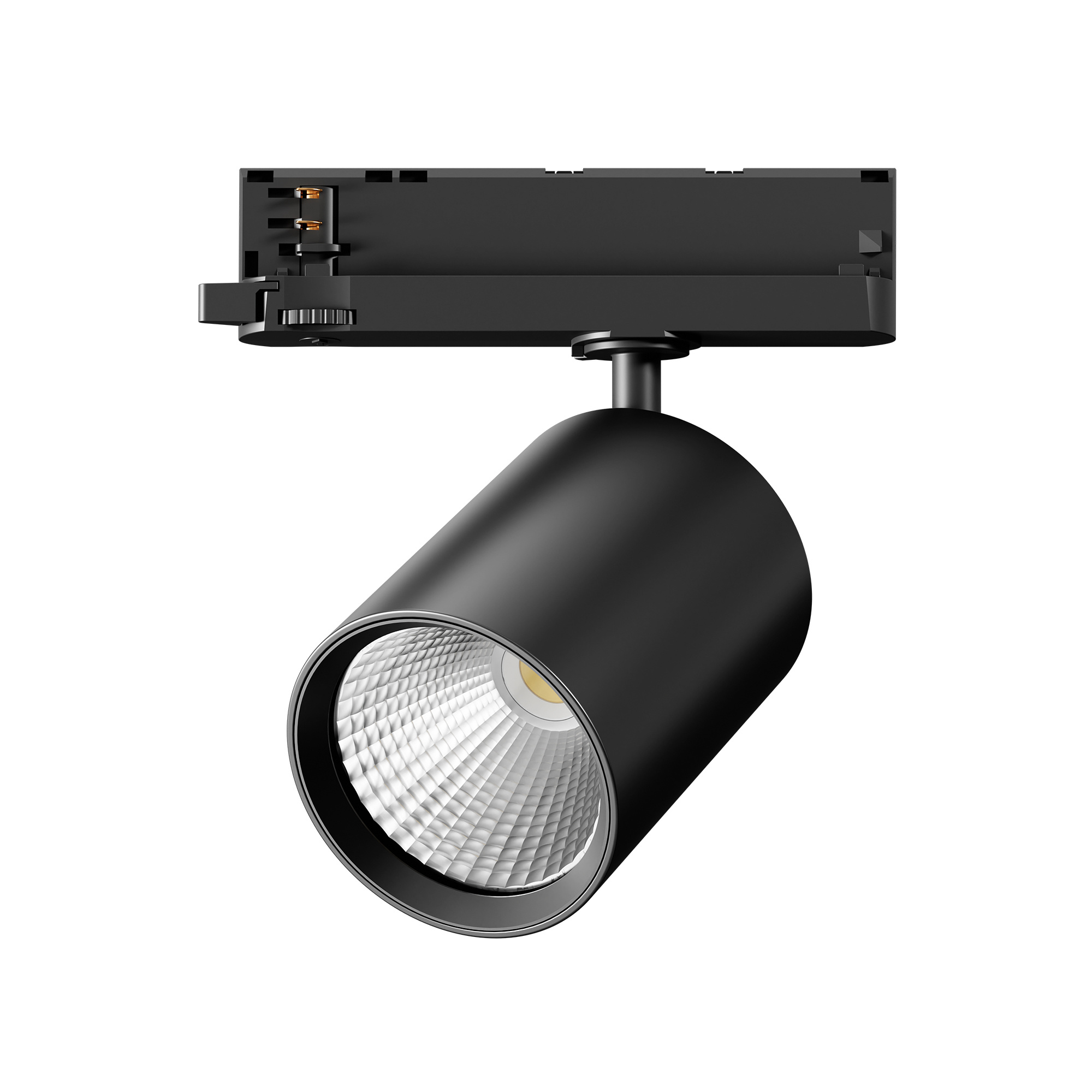

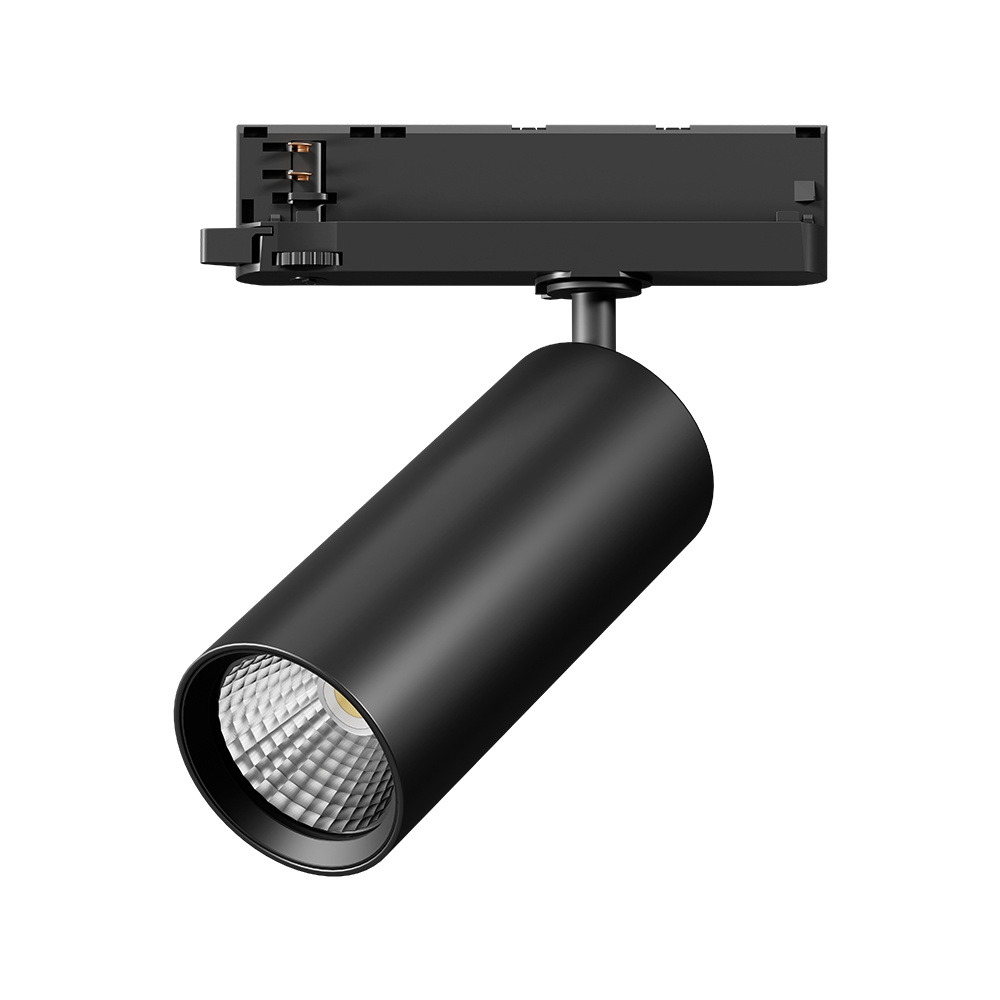

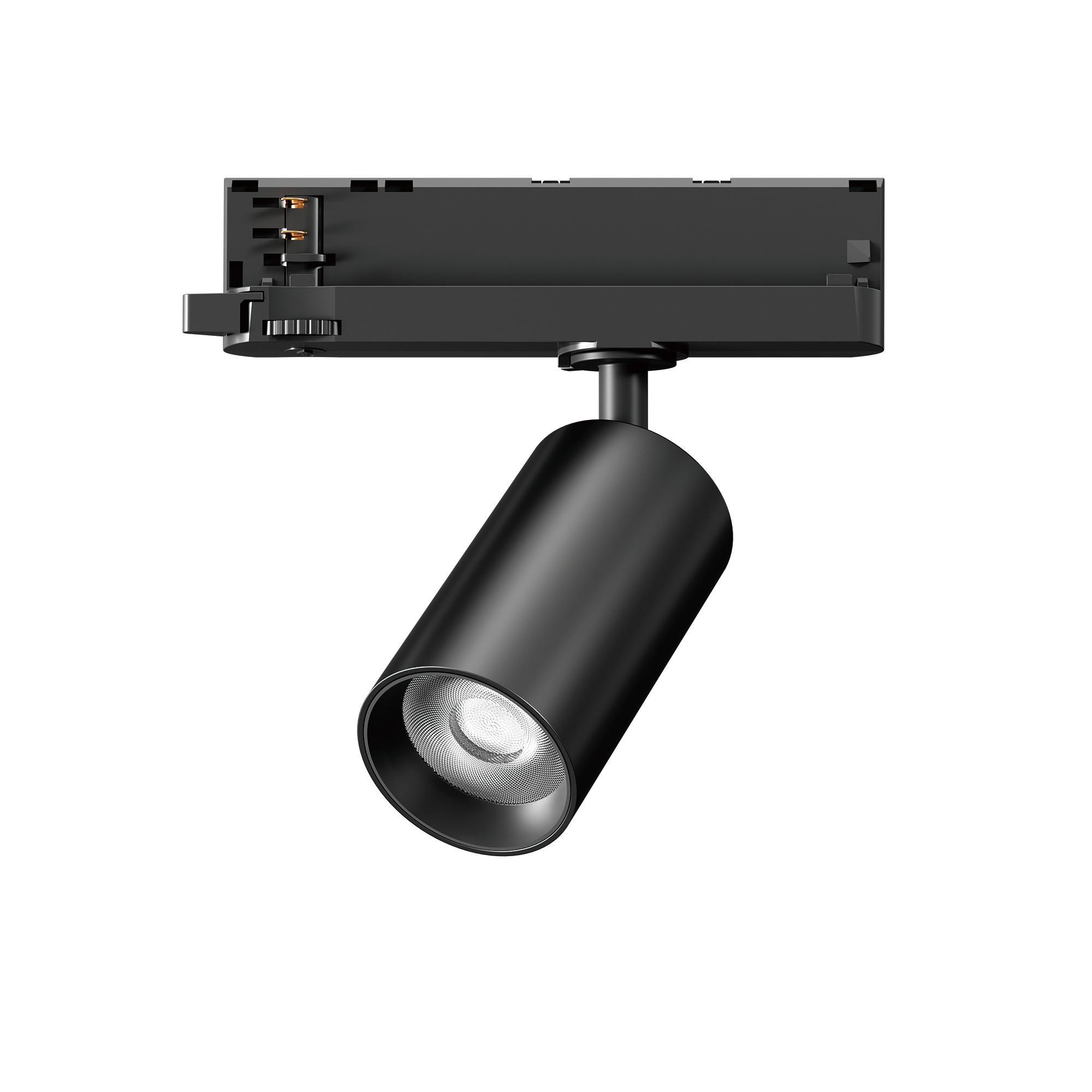

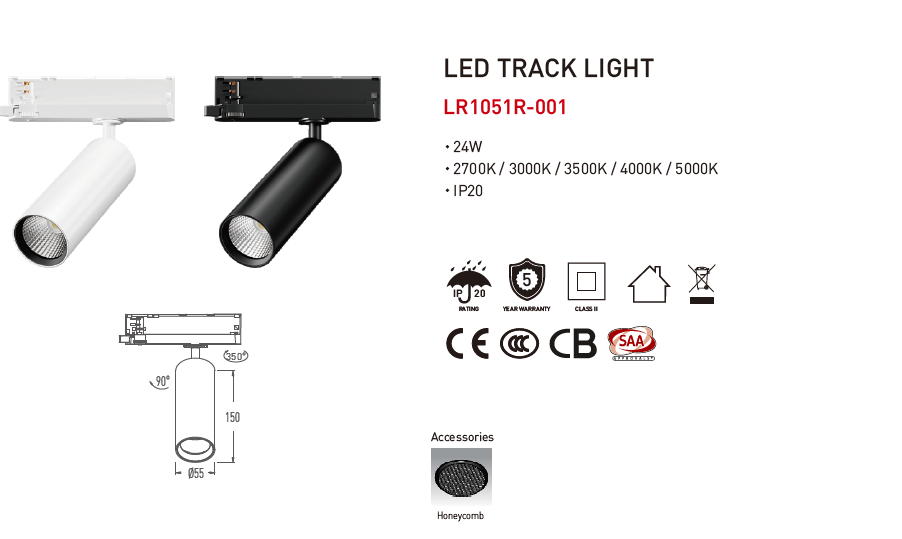

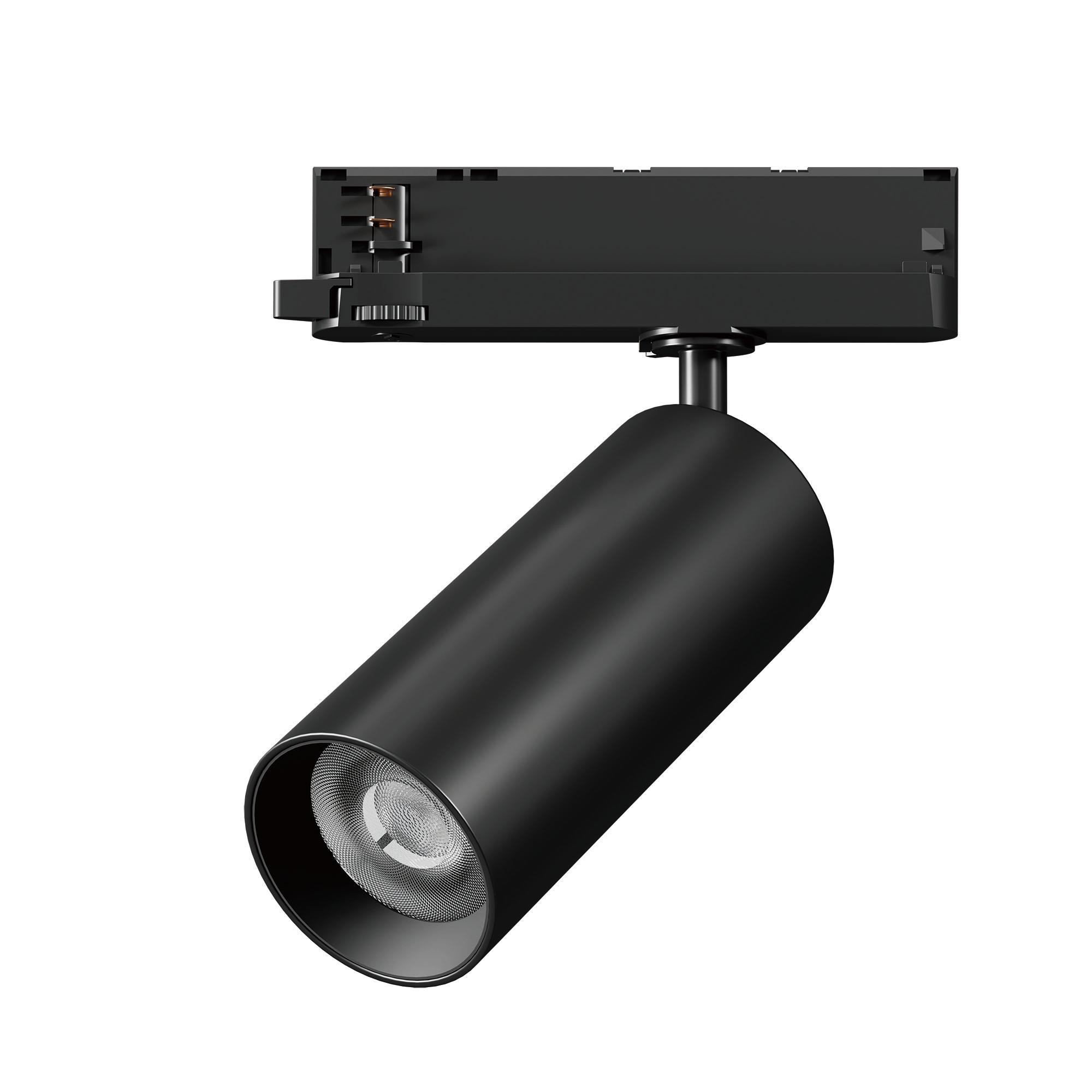

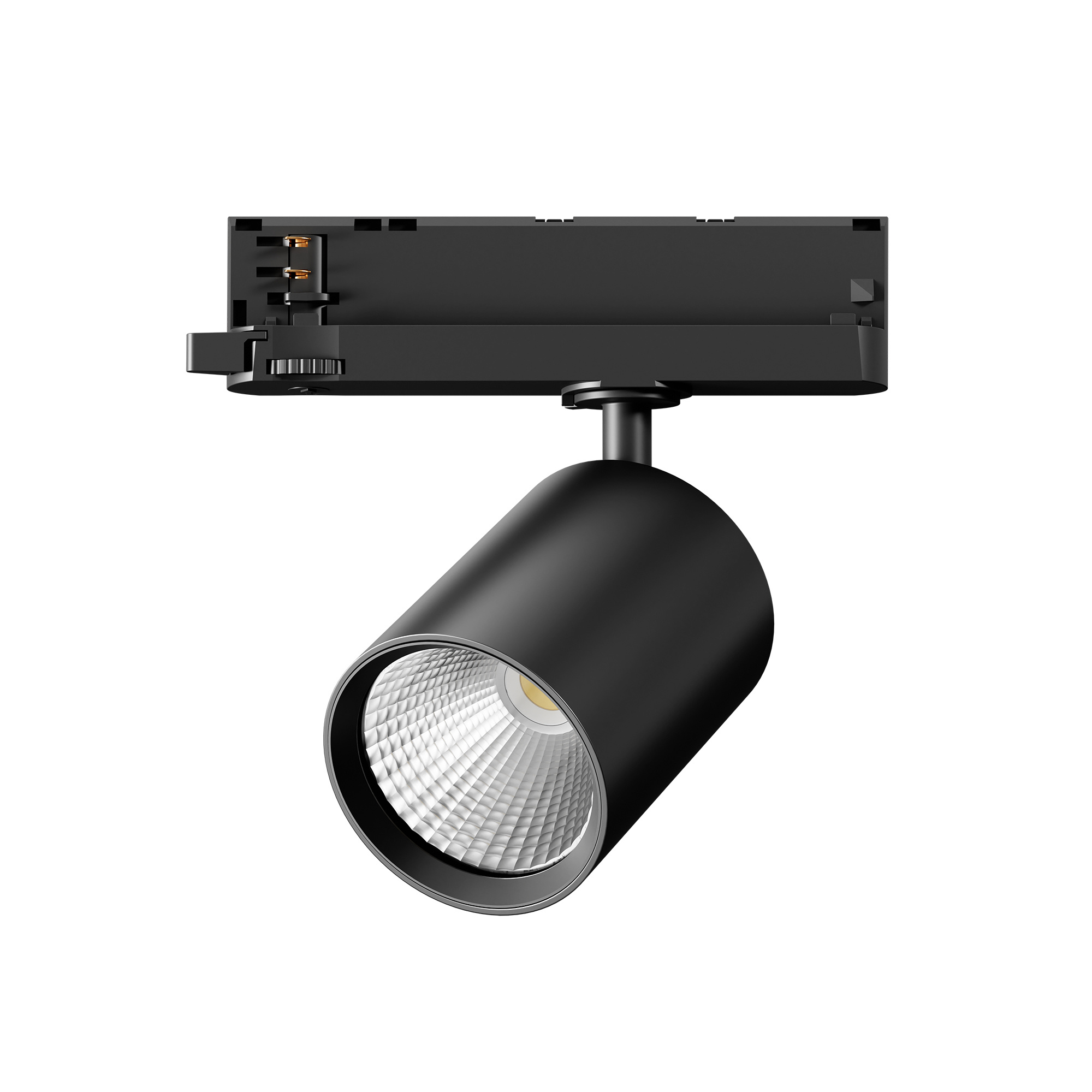

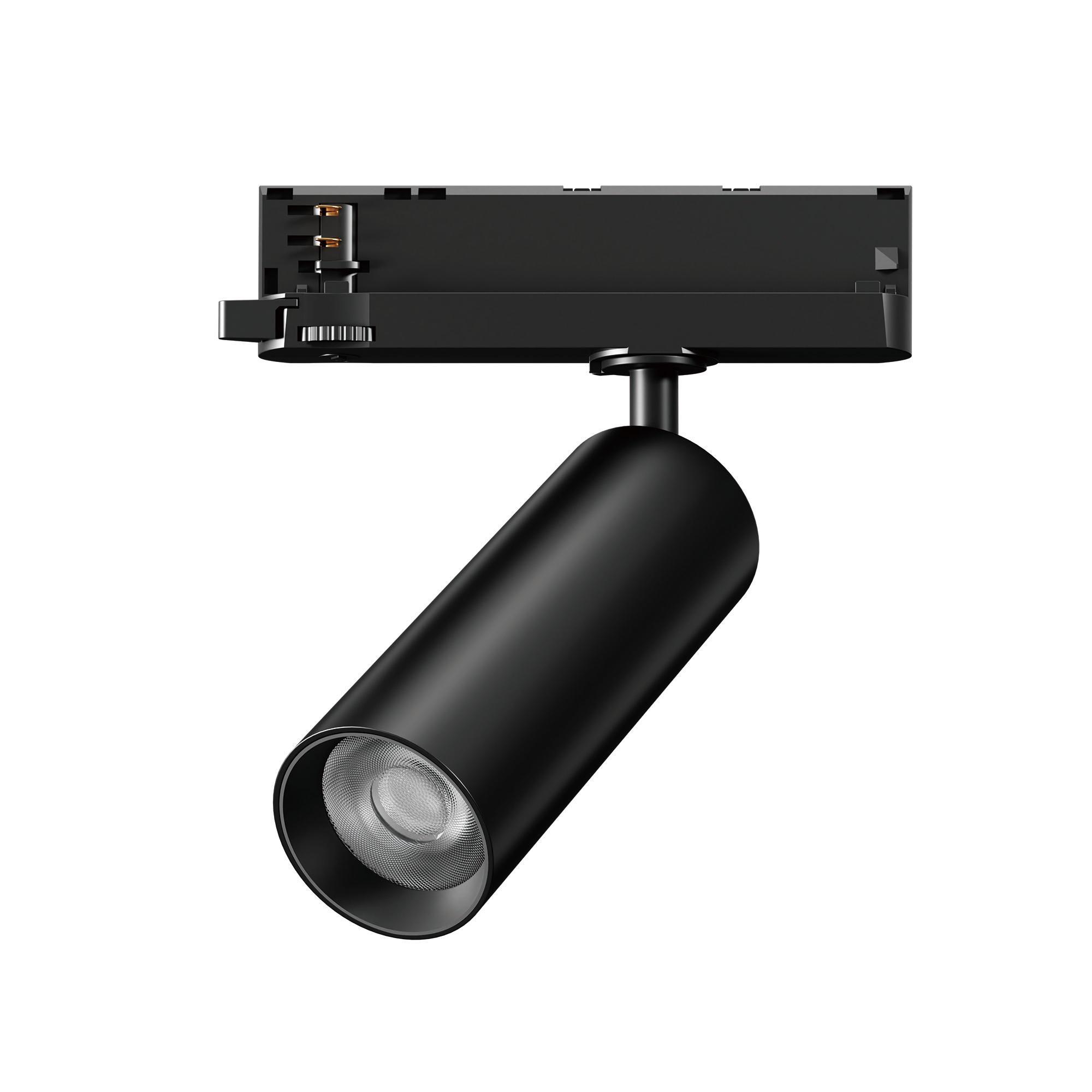

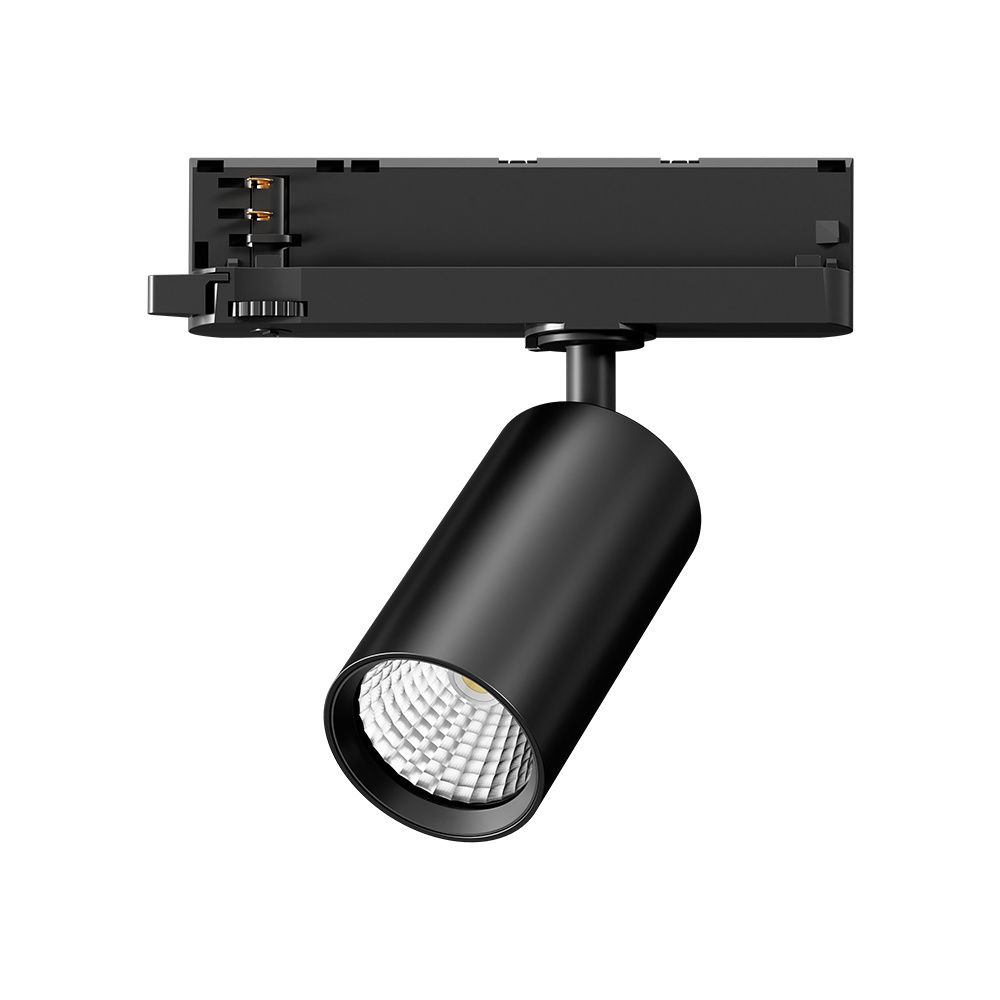

LR1051R-001 24W LED Track Lights with Reflector In-Track Adaptor On-off 1-10V DALI CASAMBI Tunable White


Voltage:

220-240V AC

Rated Power:

24W

LED:

COB

CCT:

2700K / 3000K / 3500K / 4000K / 5000K

CRI:

>90

System Lumen(lm):

1695 Lm - 2254 Lm

Beam Angle:

15° / 24° / 38°

Power Factor:

0.9

SDCM:

<3

IP Rating:

IP20

Nominal Lifetime:

50,000Hrs (L80 / B10)

Working Temperature:

-20℃~+40℃

Warranty:

5 years

Dimming:

On/Off; Triac; DALI; 0-10V; Casambi

category:

Contact Us

Specification

Data sheet

IES Test Report

Certification

Item No.:

LR1051R-001

Wattage:

24W

Color temperature:

2700K / 3000K / 3500K / 4000K / 5000K

System Lumen:

1695 Lm - 2254 Lm

CRI:

90

Beam Angle:

15° / 24° / 38°

IP Rating:

IP20

LED Type:

COB

Warranty:

5 Years

Lifetime Expectancy:

50,000Hrs (L80 / B10)

SDCM:

<3

UGR:

<15

Power Supply:

Class II Flicker Free in-track Driver

Voltage:

220-240V AC

Frequency:

50-60Hz

Working temperature:

-20℃~+40℃

Product Dimensions:

Ø55x150mm

Cutout:

Fixture Color:

Black / White

Product Materials:

Aluminium+PC

Unit Weight:

0.49 kg

Fitting Protection Classification:

Class II

Intelligent Control:

On/Off; Triac; DALI; 0-10V; Casambi

Mounting Options:

TRACK
