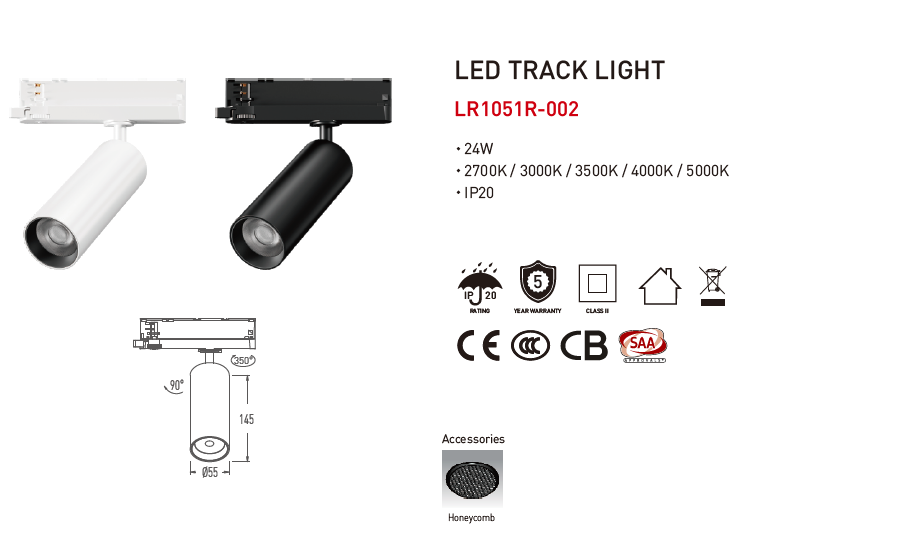

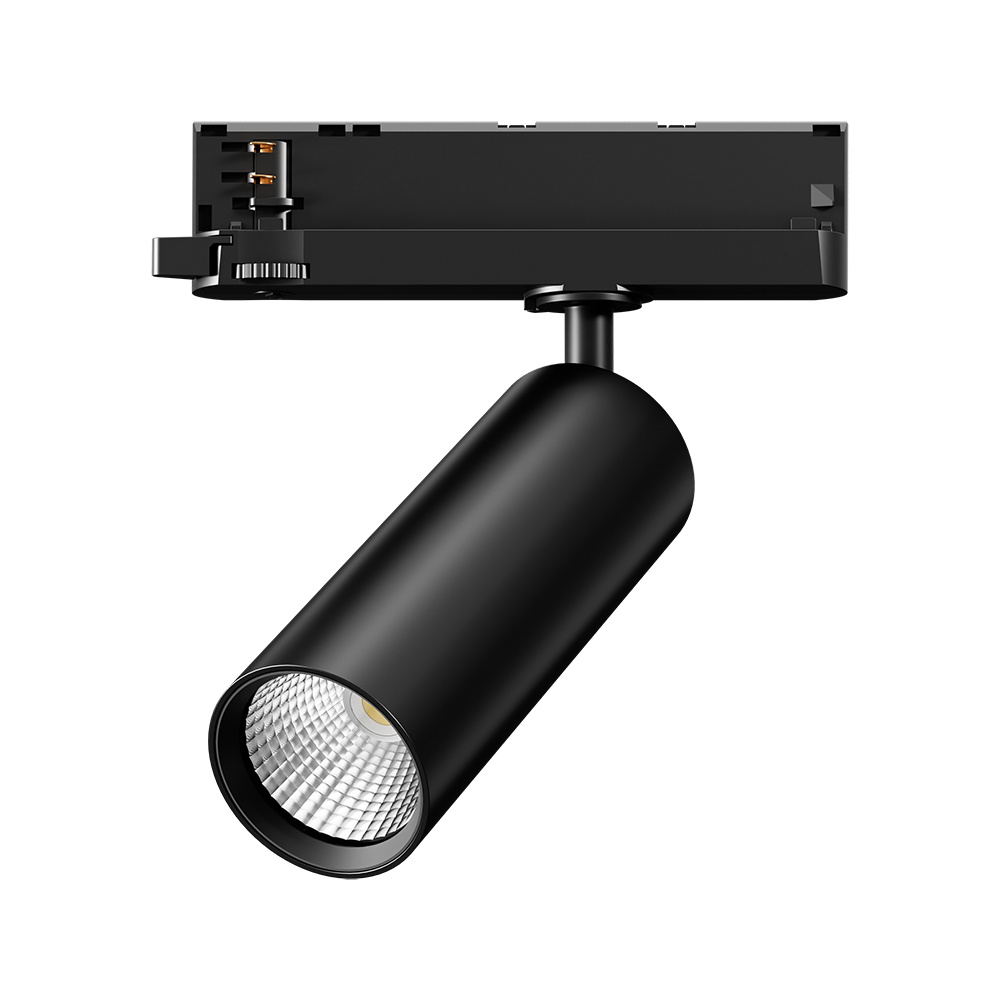

LR1051R-002 24W LED Track Lights With Lens In-Track Adaptor On-off 1-10V DALI CASAMBI Tunable White


Voltage:

220-240V AC

Rated Power:

24W

LED:

COB

CCT:

2700K / 3000K / 3500K / 4000K / 5000K

CRI:

>90

System Lumen(lm):

2093 Lm - 2490 Lm

Beam Angle:

20° / 28° / 36° / 50°

Power Factor:

0.9

SDCM:

<3

IP Rating:

IP20

Nominal Lifetime:

50,000Hrs (L80 / B10)

Working Temperature:

-20℃~+40℃

Warranty:

5 Years

Dimming:

On/Off; Triac; DALI; 0-10V; Casambi

category:

Contact Us

Specification

Data sheet

IES Test Report

Certification

Item No.:

LR1051R-002

Wattage:

24W

Color temperature:

2700K / 3000K / 3500K / 4000K / 5000K

System Lumen:

2093 Lm - 2490 Lm

CRI:

>90

Beam Angle:

20° / 28° / 36° / 50°

IP Rating:

IP20

LED Type:

COB

Warranty:

5 Years

Lifetime Expectancy:

50,000Hrs (L80 / B10)

SDCM:

<3

UGR:

<15

Power Supply:

Class II Flicker Free in-track Driver

Voltage:

220-240V AC

Frequency:

50-60Hz

Working temperature:

-20℃~+40℃

Product Dimensions:

Ø55x145mm

Cutout:

Fixture Color:

Black / White

Product Materials:

Aluminium+PC

Unit Weight:

0.49 kg

Fitting Protection Classification:

Class II

Intelligent Control:

On/Off; Triac; DALI; 0-10V; Casambi

Mounting Options:

TRACK

LR1051R-002-24W-2700K-RA90-V10C-36D.pdf

LR1051R-002-24W-2700K-RA90-V10C-50D.pdf

LR1051R-002-24W-3000K-RA90-V10C-28D.pdf

LR1051R-002-24W-3000K-RA90-V10C-20D.pdf

LR1051R-002-24W-2700K-RA90-V10C-28D.pdf

LR1051R-002-24W-5000K-RA90-V10C-50D.pdf

LR1051R-002-24W-2700K-RA90-V10C-20D.pdf

LR1051R-002-24W-5000K-RA90-V10C-36D.pdf

LR1051R-002-24W-3000K-RA90-V10C-50D.pdf

LR1051R-002-24W-4000K-RA90-V10C-36D.pdf

LR1051R-002-24W-3000K-RA90-V10C-36D.pdf

LR1051R-002-24W-4000K-RA90-V10C-50D.pdf

LR1051R-002-24W-4000K-RA90-V10C-20D.pdf

LR1051R-002-24W-4000K-RA90-V10C-28D.pdf

LR1051R-002-24W-5000K-RA90-V10C-28D.pdf

LR1051R-002-24W-5000K-RA90-V10C-20D.pdf

LR1051R-002-24W-5000K-RA90-V10C-20D_IESNA2002.IES

LR1051R-002-24W-5000K-RA90-V10C-36D_IESNA2002.IES

LR1051R-002-24W-4000K-RA90-V10C-28D_IESNA2002.IES

LR1051R-002-24W-4000K-RA90-V10C-50D_IESNA2002.IES

LR1051R-002-24W-5000K-RA90-V10C-50D_IESNA2002.IES

LR1051R-002-24W-5000K-RA90-V10C-28D_IESNA2002.IES

LR1051R-002-24W-4000K-RA90-V10C-20D_IESNA2002.IES

LR1051R-002-24W-4000K-RA90-V10C-36D_IESNA2002.IES

LR1051R-002-24W-2700K-RA90-V10C-28D_IESNA2002.IES

LR1051R-002-24W-2700K-RA90-V10C-36D_IESNA2002.IES

LR1051R-002-24W-2700K-RA90-V10C-50D_IESNA2002.IES

LR1051R-002-24W-3000K-RA90-V10C-20D_IESNA2002.IES

LR1051R-002-24W-3000K-RA90-V10C-50D_IESNA2002.IES

LR1051R-002-24W-3000K-RA90-V10C-36D_IESNA2002.IES

LR1051R-002-24W-3000K-RA90-V10C-28D_IESNA2002.IES

LR1051R-002-24W-2700K-RA90-V10C-20D_IESNA2002.IES
